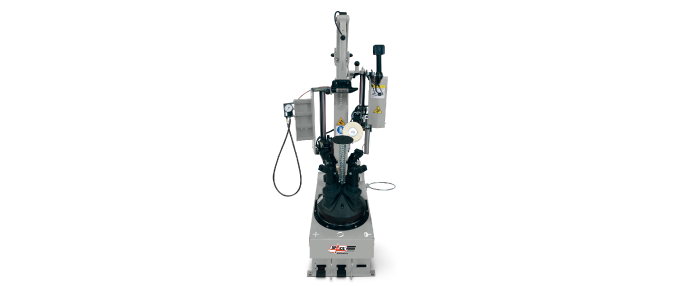

MAXIMA PRO – MAXIMA DUO

Products > Tyre changers > Car > Top Line

01_maxima-pro_duo

Models

GA461.24ELX
GA441.24ELX

Professional tyre changer for intensive use, it offers all the features requested by the most demanding operators and tyre specialists. Its hydraulic bead loosener enables the user to handle every kind of wheel without any damage.
Its exclusive mounting head (synthetic material) can run closer to the rim than any steel head, reducing stress on beads on low profile tyres.

  • Ergonomic
  • Hydraulic Double Separate Roller
  • Easy Demounting (Lower Bead)

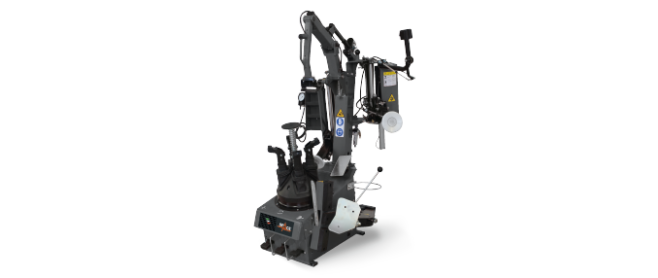

MAXIMA ELX
GA401.24ELX  –  Air Motor

  • Patented plastic mounting/demounting head
  • Demountable spring loaded centering device
  • Damage free Inner&Outer clamping
  • Powerful bead loosener

TOP INFLATOR
GA461.24ELXIT
GA441.24ELXIT
GA401.24ELXIT

Version with patented TOP inflation device.

Technical Data


Chuck rotation speed 13 rpm
Rotation motor 1,5Kw  inverter + 0,75 Kw motor
Max wheel diameter 45″ – 47″ (CL)
Vertical bead loosener opening 490 mm (19”)
Side bead loosener opening 400 mm (15,5”)
Inner clamping 12”- 24”
Outer clamping 12”- 24”
Bead loosener power (each roller) 2.000 kg (4400 lbs)
Side bead loosener power 3.000 kg (6600 lbs)
Max torque 1200 Nm
Recommended air supply 8 / 10 bar
Power supply 1 ph, 200/265v, 50/60Hz
