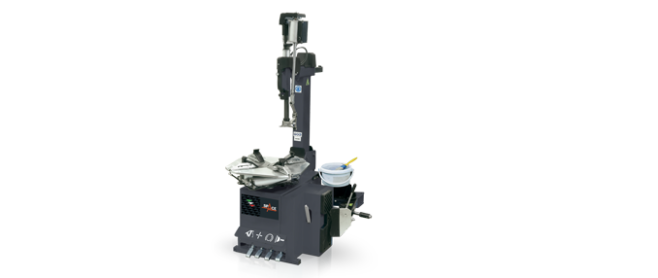

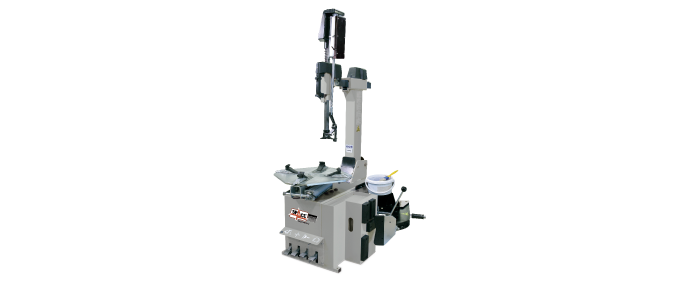

J-AUTOLEVER

Products > Tyre changers > Car > Leverless

01_jautolever

Features

  • D VERSION INVEMOTOR 0-15 RPM – Variable Speed
  • V VERSION – Double Speed
  • Patented lever-free tool – Fits between the tyre and rim and takes hold of the bead, gradually lifting it without the aid of bead-lifter levers
  • The exclusive working movement allows to catch the lower bead with no use of the PLUS device
  • Self-centring chuck:
    – Two-way rotation
    – High torque
    – High clamping force (two pistons)

Models

    IN OUT
GA2841V.24 2 SPEED 12”-26,5” 10”-24”
GA2841V.22 13”-24,5” 11”-22”
GA2841V.20 12”-22,5” 10”-20”
GA2841V.18 12”-20,5” 10”-18”
GA2841D.24 VARIABLE
SPEED
12”-26,5” 10”-24”
GA2841D.22 13”-24,5” 11”-22”
GA2841D.20 12”-22,5” 10”-20”
GA2841D.18 12”-20,5” 10”-18”



    IN OUT
GA2845V.30 2 SPEED 10”-33” 8”-30”
GA2845V.28 12”-30,5” 10”-28”
GA2845V.26 12”-28,5” 10”-26”
GA2845V.22 13”-24,5” 11”-22”
GA2845V.20 12”-22,5” 10”-20”
GA2845V.18 12”-20,5” 10”-18”
GA2845D.30 VARIABLE SPEED 10”-33” 8”-30”
GA2845D.28 12”-30,5” 10”-28”
GA2845D.26 12”-28,5” 10”-26”
GA2845D.22 13”-24,5” 11”-22”
GA2845D.20 12”-22,5” 10”-20”
GA2845D.18 12”-20,5” 10”-18”



Technical Data

  GA2841V.18
GA2841D.18
GA2845V.18
GA2845D.18
GA2841V.20
GA2841D.20
GA2845V.20
GA2845D.20
GA2841V.22
GA2841D.22
GA2845V.22
GA2845D.22
GA2841V.24
GA2841D.24
GA2845V.26
GA2845D.26
GA2845V.28
GA2845D.28
GA2845V.30
GA2845D.30
Motor 0,8/1,1 Kw – 230/400V (50Hz) – 3ph (V versions)
0,75 Kw – 200/265V (50-60Hz) – 1ph (D versions)
Chuck rotation speed
(rev/min)
6,5-13 rpm (V version)   0-15 rpm (D version)
Max. torque to chuck 1400 Nm
External clamping 10”-18” 10”-20” 11”-22” 10”-24” 10”-26” 10”-28” 8”-30”
Internal clamping 12”-20,5” 12”-22,5” 13”-24,5” 12”-26,5” 12”-28,5” 12”-30,5” 10”-33”
Tool working span 8”-24” (GA2841) 8”-32” (GA2845)
Max. tyre diameter 1050 mm (41”) (GA2841) 1143 mm (45”) (GA2845)
Max. rim width 381 mm (15”) (GA2841) 431 mm (17”) (GA2845)
Bead breaker cylinder power
at 12 bar
3600 kg (8000 lbs)



application/pdf icon Brochure

application/pdf icon Accessories

video Video
