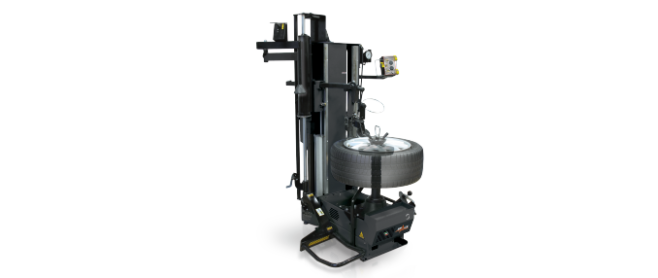

GA560.30 GIOTTO

Products > Tyre changers > Car > Leverless

06_GIOTTO

Features

  • Intuitive Controls
  • Syncro Rollers – The bead-breaking is performed by means of two rollers with a synchronized movement. The bead-breaking of both sides is quickly performed.
  • Easy Demounting – The tool enters between bead and rim. Levering on the rim, the tool pulls up the bead, minimising the stress. The bead is progressively pulled up.
  • Adjustable Locking – 3-position extendable base.
  • Reverse Wheel Fast Locking – Central rim locking system, suitable also for reverse rims. The stress is minimal thanks to the special plate on which the wheel lays. The plate is floating, therefore offering a self-locking mechanism.
  • Invemotor - The electrical motor is equipped with an exclusive and innovative inverter, which:
    – allows to regulate the chucking table rotation speed by pressing the pedal
    – slows down the rotation speed as the stress on the bead increases (to avoid any damage to the tyre)

Technical Data



Handles wheels from

10”-26” / 12”-28” / 14” – 30”

Weight

330 kg (338 kg IT)

Max wheel width

15”

Max wheel diam.

45”

Bead break.pow. (each arm)

1200 kg

Max torque

120 Kgm

Bead breaker mouvement

automatic

Rotation Mot or

1,5 Kw invemotor
+0,75 Kw motor

Recommended air supply

8 -10 bar

Power Supply

1ph, 200/265v, 50/60Hz
