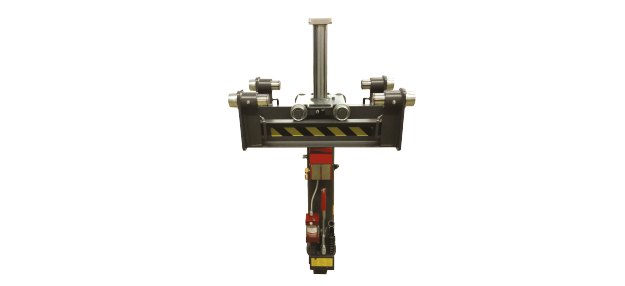

Wheel-free jacks Suspended

Products > Lifts > Wheel-Free Jacks > Products > Other products

Smooth running.

The needle roller bearings on the carriage rollers allow effortless sliding of the lift inside the pit.

Durability.

The piston rod and the pump piston are hard-chrome plated, for protection against corrosion and wear.

Fully hydraulic lifting unit.

Thanks to the patented corrosion prevention system, during every lifting and lowering movement the cylinder is submerged in oil on either side of the sealing sleeve. This means that both the piston rod and the cylinder are constantly in an oil bath, effectively protecting the cylinder walls against corrosion.
The hydro-pneumatic forced return rapidly retracts the piston even when off-load. Unlike conventional pit lifts, the piston is in effect “pulled” back into its rest position.



J155.6M V1 - 15,5T - 830/920 mm
J155.6M V2 - 15,5T - 920/1010 mm
J155.6M V3 - 15,5T - 1010/1100 mm

Quick pneumatic approach of the piston to the lifting point.
Lifting by hand pump.
Precise rod positioning.



J155.8 V1 - 15,5T - 830/920 mm
J155.8 V2 - 15,5T - 920/1010 mm
J155.8 V3 - 15,5T - 1010/1100 mm

Quick pneumatic approach of the piston to the lifting point.
The air-hydraulic pump allows the load to be lifted without any physical effort. With additional hand pump for precise positioning.





 CapacityLifting strokeTrolley widthRecommended air supply
 kgmmmm (A)bar

J155.6M V1

15500600830 - 92012

J155.6M V2

15500600920 - 1.01012

J155.6M V3

155006001.010 - 1.10012


J155.8 V1

15500800830 - 92012

J155.8 V2

15500800920 - 1.01012

J155.8 V3

155008001.010 - 1.10012





Perfect positionning under the vehicle.



Adjustable trolley width.



OPTIONS



SJA2 - 15,5T





SJA3 - 15,5T





SJA1 - 1.000 kg

Angular adjustment +/- 12°.
Includes 2 belts max. span 8000 N
