SDE SERIES

Products > Lifts > Car > Two posts lifts > Electro-mechanical

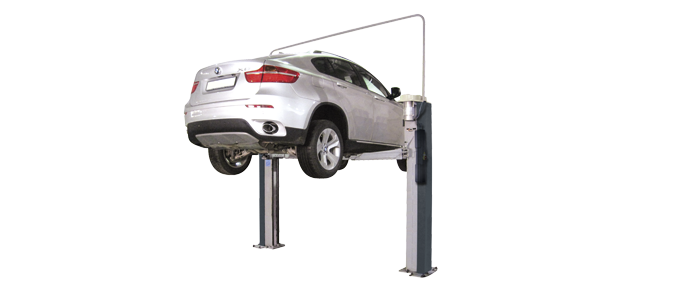

SDE_04

Features

  • Lifting height over 2 metres
  • Steel high resistance rolled screws, to provide long life
  • Main nut made of bronze (no plastic) with high resistance to wear, for greater safety
  • Automatic and permanent nut lubrication system to guarantee efficient lubrication during lifting and descent
  • The carriage driven by 10 low friction slides on the post external part assure equilibrated and steady lifting also in case of asymmetric loading and prevent transmission of flexion to the spindles and the nuts, granting long life
  • Automatic arm locking during lifting and automatic unlocking when the arm reaches the floor – self – locking conical design

Models

SDE = BASELESS

SDE 2336 – 2700 kg
SDE 2337 – 3200 kg
SDE 2341E – 3200 kg – large

Baseless lift. The electromechanical synchronisation keeps the carriages within an alignment of 20 mm.

SDE 2337K – 3200 kg
SDE 2341EK – 3200 kg – large

Short arms with longer reach, recommended to lift off-road vehicles with very inboard lifting points- arms suitable for quick drop-in extensions and other lifting accessories. Min. pad height 95mm.

SDE 2315K – 3200 kg
SDE 2225K – 3200 kg – large

As SDE 2337K, 2341EK but with electronic synchronisation. Cables can be ceiling installed or recessed in the floor.

R = RACING ARMS

SDE 2337 R – 3200 kg
SDE 2341E R – 3200 kg – large

Extra low profile arms, parallel to the floor – double thread pads with a min. height of 80 mm only – recommended for sport cars and very low profile vehicles.

SDE 2345E- 3700 kg
SDE 2349E- 4200 kg

Three-stage short arms and two-stage long arms provide asymmetric lifting of vans and off-road vehicles-width between posts 2650mm.

SDE 2345EK – 3700 kg
SDE 2349EK – 4200 kg

Arms suitable for quick drop-in extensions.

SDE 2345ELIK – 3700 kg
SDE 2349ELIK – 4200 kg

Model equipped with four long three-stage arms: ideal to lift long wheel base vans and easy lifting of cars.

SDE 2235EK – 3700 kg
SDE 2245EK – 4200 kg
SDE 2235ELIK – 3700 kg
SDE 2245ELIK – 4200 kg

Electronic synchronisation.

EXTRA LONG WHEEL BASE
HIGH CAPACITY

SDE 2250 LIKT – 5000 kg

Model equipped with four extra long three-stage arms: ideal to lift long wheel-base vans like Mercedes Sprinter and VW Crafter. The arms’ extensions slide on spring-mounted rollers, allowing easy use and a steady load.

SDE 2250LIKA – 5000 kg

Model equipped with four long three-stage arms: ideal to lift long wheel base vans and easy lifting of cars.
